Pilot Rock RJ Thomas Mfg. Co.

N/G-24 Galvanized Steel Charcoal Grill

Please make the following configuration choices:

Shelves for Grills

If you want an optional utility shelf for your grill select the shelf here.

($30.00)
($83.00)

Base Post Options - Grills

Select the base post for your preferred installation method. A base post must be selected.

($27.00)
($35.00)
($102.00)

Other Options for Grills

Select another Add-On Option for your grill. Also see Your Grill Accessories page for more information.

($160.00)
  • Price Per Unit Starts At:
    $432.00
Material Options

Model N/G-24 charcoal grill has all the features of the N-24 but with a hot-dip galvanized firebox and post for rust inhibition and 432 sq. inches of cooking area on the four-level adjustable cooking grate.

All N-Series charcoal grills are permanently attached to the base post with our unique swivel mechanism providing a theft-proof connection with continuous 360-degree rotation in either direction.  Embedded installation of post is standard B2G) using a 3-1/2" OD x 40" post.

All-welded grill firebox construction.  The N-24 firebox is fabricated from 3/16" (7 ga.) thick steel.  All N Series designs include integral die-formed flanges to retain ashes and to reinforce the firebox from heat warpage.

All welded cooking grate construction.  N Series grill cooking grates are fabricated using 5/8" dia. steel bars for support handles, and 1/2" dia. steel bars for the cooking surface.  The cooking grate is permanently incorporated into the firebox and cannot be removed.  All cooking grates are finished with high temp non-toxic black enamel paint.  All grate handle grips are 1/8" x 1/2" coiled steel bar.  All grate bars are welded on both sides.

OPTIONAL: Bolt on utility shelf for all N Series charcoal grills: Model S3/G galvanized on N/G-20 and N/G-24.

OPTIONAL: Hinged steel grill cover on Model N-20 and N-24 (painted or galvanized finish).   Model S3 shelf cannot be used with cover.

OPTIONAL BASES: To replace the standard embedded post.
Portable disc base (B4) is not galvanized.
Bolt down/surface mount base post (B3 or B3G galvanized).  Anchor bolts are not included - use Model ANC1-4 Concrete Anchor Kit.


 California's Proposition 65.

You May Also Like

Series CTA
Utility Tables
Model ULT-2 Utility Table
Model ULT-2 Utility Table
SKW: ULT-2::
18" x 48" table on a single embedded or surface mount pedestal.
Series CTA
Trash & Recycling Receptacles
Round Receptacle - Perforated Steel
Round Receptacle - Perforated Steel
SKW: CN-R
Fabricated using perforated steel and available in 3 sizes.
Series CTA
Picnic Tables

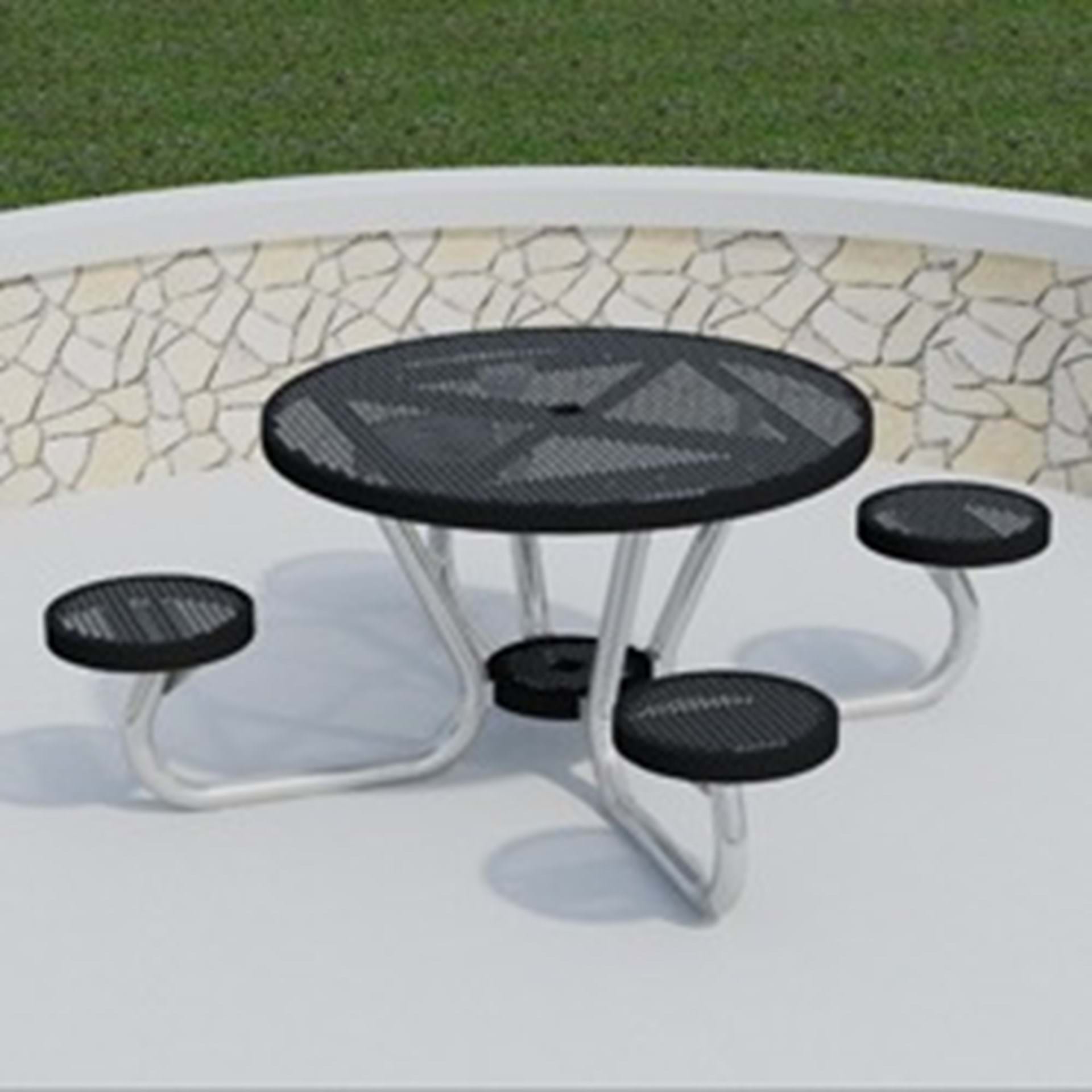

T200 Series - Round, Portable Picnic Table With ROUND Seats - Using Perforated Steel
