Pilot Rock RJ Thomas Mfg. Co.

XTX Series Utility Table - Using Formed Steel Channel

Please make the following configuration choices:

Frame Finish

Select the finish you want on the frames.

MATERIAL & LENGTH CHOICES

Select the Material and Length you want for this product.

($701.00)
($752.00)
  • Price Per Unit Starts At:
    $701.00

Model XTX Utility Table is a durable and versatile design variation of our XT Series Picnic Tables.

Specifications:

Table top is 30" high (nom.).  The wide stance frame with formed and flattened feet provide a stable portable table.  The frame feet include 9/16" dia. holes for anchors (not included) for a secure surface bolt down installation.

FRAME KIT: All welded 2-3/8" OD steel pipe end frames (2.375" OD, 11 ga. wall, 2" ID nom. pipe specifications).  Top mounting brackets are 2" x 2" x 10 ga. die formed steel angles.  Frames supported by diagonal braces of 1-5/16" OD steel pipe attached to steel center channel.  Includes all 3/8" dia. galvanized carriage bolt fasteners.

FINISH: Standard finish: hot dip galvanized after fabrication.  Or choose a powder coat finish (in place of galvanized finish) in your color choice.

LENGTH: Tables can be 6 or 8 ft. long.

TABLE MATERIAL: 2" x 4" formed steel channels assembled into table top and thermo-plastic coated in your choice of color.  See Material Options.

OPTIONAL: Model ANC3-4 Anchor Kit for surface mounting.

You May Also Like

Series CTA
Accessories
Model ANC3-4 Anchor Kit
Model ANC3-4 Anchor Kit
SKW: ANC3-4
Four 3/8" x 3" Concrete Screw Anchors
Series CTA
Trash & Recycling Receptacles
Round Receptacle - Vertical Steel Straps
Round Receptacle - Vertical Steel Straps
SKW: CN-R/SS2
Designed to hold most available 30-36 gallon liners
Series CTA
Picnic Tables

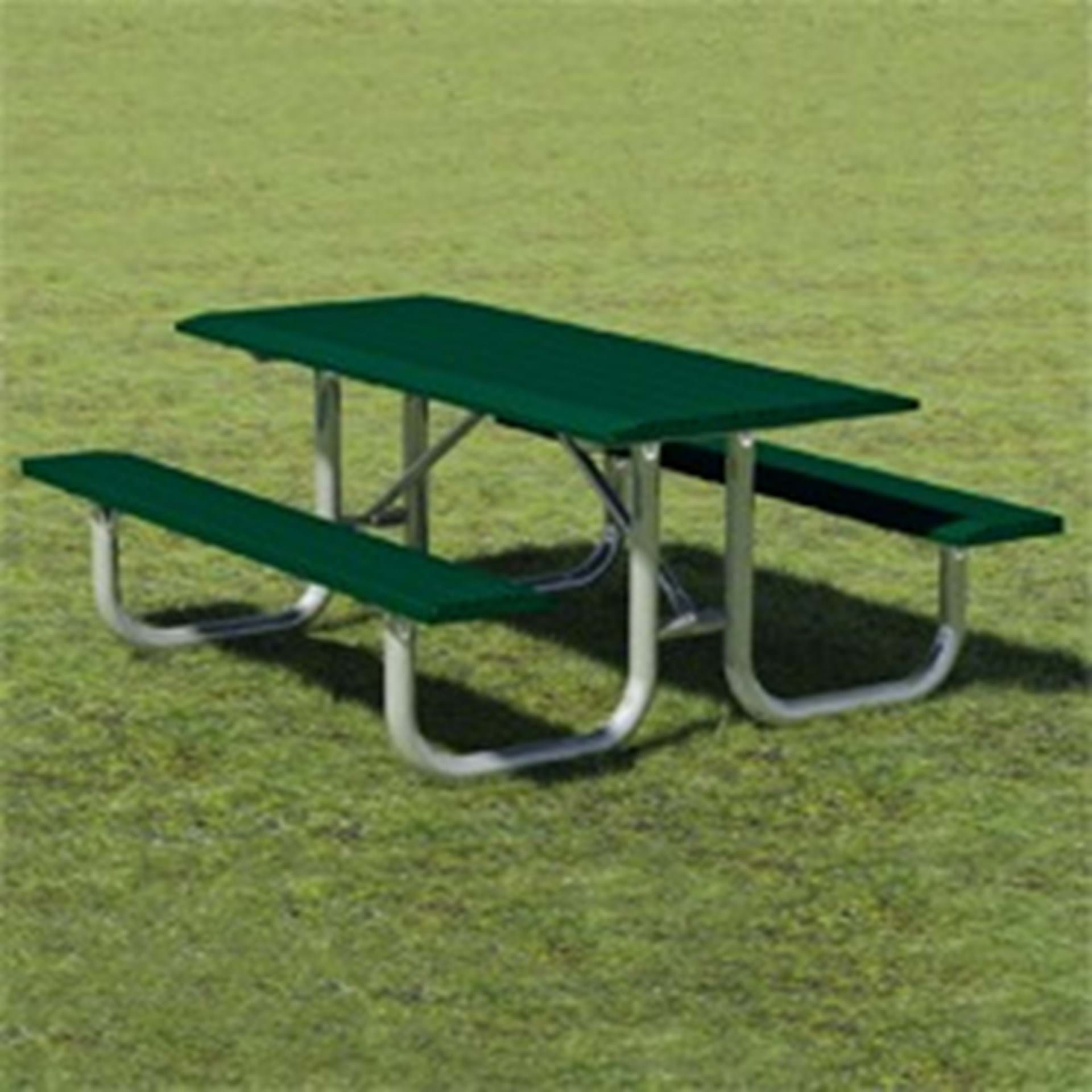

XT Series Picnic Table - Using Formed Steel Channel
